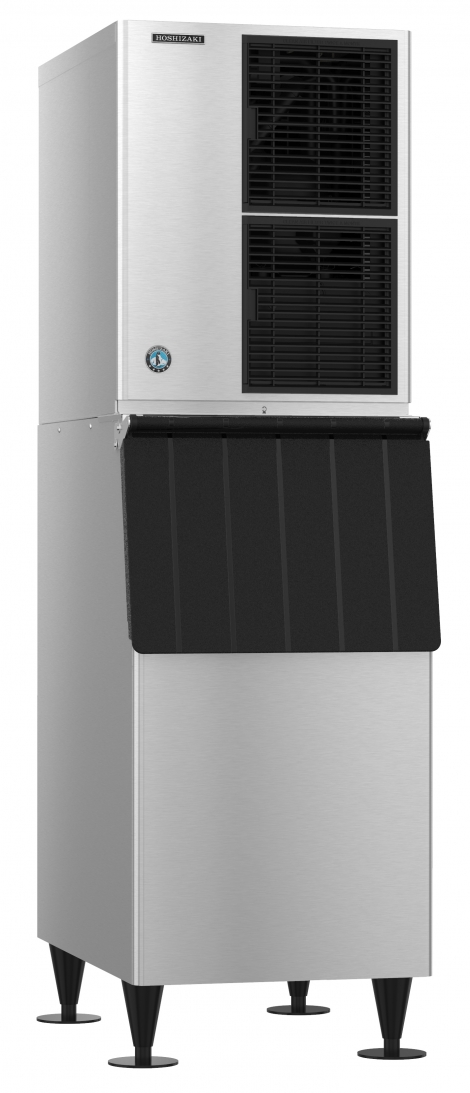

Hoshizaki KM-660MAJ 665lb Air Cooled Slim Line Modular Crescent Cube Ice Machine w/B-500SF 500lb Ice Bin
KM-660MAJ
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 665 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 9.8 oz. / 731 g)
- Heat Rejection:10400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 15.2 amps (20 Amp Max fuse)
- 5.12 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
B-500SF
- Dimensions: 30″ W x 32- 1/2 ” D x 46″ H
- Stores up to 500 lbs of ice
- Capacity based on 16.33 ft3 x 30lbs/ft3 average density of ice
- Durable and easy to clean Stainless Steel exterior
- Polyethylene bin liner for sanitary ice storage
- Foamed-in-place polyurethane insulation
- Protected by H-GUARD Plus Antimicrobial Agent
- For top-mounted ice maker, top kits sold separately (See spec sheet for details)
- Top-hinged front-opening bin door
- Sturdy construction capable of supporting stacked ice machine configurations
- Standard with 6″ Painted Legs
- Optional: Four, 6″ Stainless Steel Legs – LP-6 LEG
- 3/4″ FPT drain
- 155 lbs
- Two Years: Parts & Labor warranty (Before January 2012 production)
Additional Info
Additional Info
Manufacturer | Hoshizaki |
---|---|
Free Shipping | No |
Product Type | No |
Product Documents
Product Documents
- Hoshizaki KM-660MAJ Spec Sheet (1.74MB)
- Hoshizaki B-500SF Spec Sheet (879.42kB)
